Temperature Probes

External probes for specific applications and extended temperature ranges

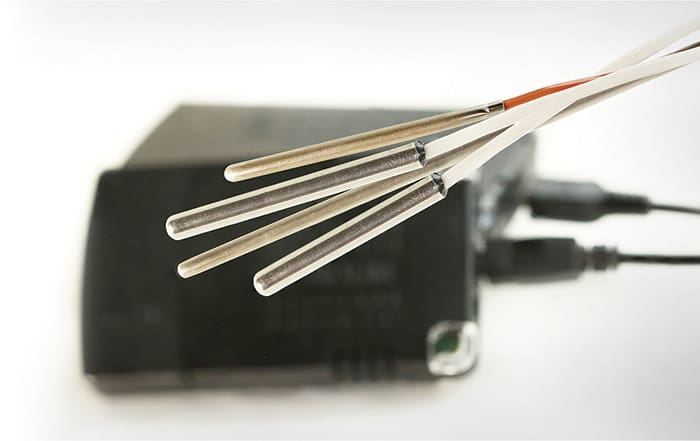

Sendum offers a range of temperature probes for the PT300 Tracking System that combine high accuracy and rugged construction.

Designed to monitor air, liquid, or surface temperatures, each temperature probe tip integrates a fast response sensor (thermistor or thermocouple) inside a fully potted metal housing.

tempprobe-350

Benefits

  • External temperature probes allow you to monitor a far wider range of temperatures than that possible by using the standard temperature sensor on-board a PT300D Sensor or Accessory Pack.
  • External probes also you to monitor far harsher environments. For example, the PT300D hardware can be protected in a special insulated enclosure while the probe is inserted into an extreme temperature environment.
  • The ability to use external probes gives you the flexibility to meet your specific application requirements.

Features

  • Designed to connect into Sendum tracker hardware (model dependent, see Probe Specifications)
  • High accuracy thermistor or thermocouple sensor (model dependent)
  • Excellent thermal sensitivity and response
  • Sturdy construction – all metal housing with a molded plastic shell
  • NIST-traceable calibration

Temperature Probe Specifications

Temperature Probes with the Micro A connector

The following temperature probes are compatible with the Accessory Pack. Each probe has a Micro A plug which connects into the Micro A receptacle on the pack.

Part Number Product Name Temperature Range Accuracy Cable Length Probe Tip
BFA10094 General Purpose -35 to +30° C (-31 to 86° F) 0.1˚C / 0.18˚ F
over -20 to 30˚ C
0.2˚C / 0.36˚ F
over -35 to -20˚ C
57 cm (22.5”) 3.8 cm (1.5”) Stainless Steel; Thermistor
BFA10110 Dry Ice -75 to -85° C (-103 to -121° F) 0.2° C. / 0.36° F 57 cm (22.5”) 3.8 cm (1.5”) Stainless Steel; Thermistor
BFA10128 Cryogenic (LN2) -100 to -196° C (-148 to -320° F) 3.0° C / 5.4° F 57 cm (22.5”) 7.62 cm (3”) Stainless Steel; Type T Thermocouple
BFA10113 Cryogenic (LN2) -100 to -196° C (-148 to -320° F)3 3.0° C / 5.4° F 106.7 cm (42.0”) 15 cm (6”) Stainless Steel; Type T Thermocouple
Micro_A_1000

Micro A Plug

Accessory_Pack_1000

Accessory Pack showing Micro A Connector

BFA10094_1000

BFA10094 General Purpose Probe

BFA10110_1000

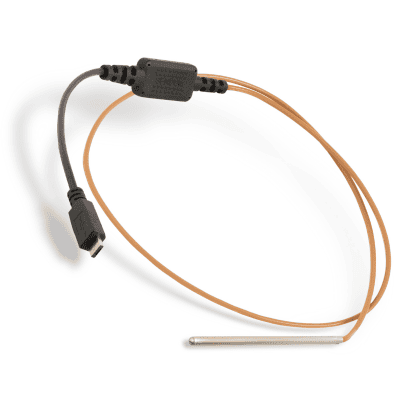

BFA10110 Dry Ice Temperature Probe

bfa10128

BFA10128 Cryogenic (LN2) Probe

BFA10113_1000

BFA10113 Cryogenic Temperature Probe

Temperature Probes with the Mini B connector

The following temperature probes are compatible with both the Basic and Advanced Sensor Packs. Each probe has a Mini B plug (ID Pin GND) which connects into the Mini B receptacle on the pack.

Part Number Product Name Temperature Range Accuracy Cable Length Probe Tip
BFA10093 General Purpose -35 to +30° C (-31 to 86° F)  0.1˚C / 0.18˚ F
over -20 to 30˚ C
0.2˚C / 0.36˚ F
over -35 to -20˚ C
57 cm (22.5”) 3.8 cm (1.5”) Stainless Steel; Thermistor
BFA10119 Dry Ice -75 to -85° C (-103 to -121° F) 0.2° C. / 0.36° F 57 cm (22.5”) 3.8 cm (1.5”) Stainless Steel; Thermistor
BFA10141 Cryogenic (LN2) -100 to -196° C (-148 to -320° F) 3.0° C / 5.4° F 106.7 cm (42.0”) 15 cm (6”) Stainless Steel; Type T Thermocouple
Mini_B_1000

Mini B Plug

pt300d-probe

BFA10093 Probe plugged into Mini B connector on Sensor Pack

BFA10093_1000

BFA10093 General Purpose Temperature Probe

bfa10109

BFA10141 Cryogenic (LN2) Temperature Probe

bfa10119_1000

BFA10119 Dry Ice Temperature Probe
